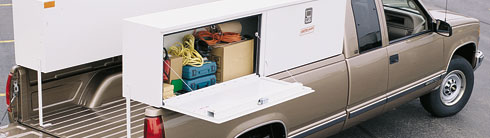

Hi-Side Boxes

Designed to carry more tools by freeing up the storage space in a cargo bed, WEATHER GUARD® Hi-Side Boxes come in both aluminum and steel with extensive reinforced design. Hi-Side Boxes mount on the side rails of a pickup and come in a variety sizes and styles to suit both your needs and your trade, and are manufactured with these standard features:

  • Designed with extensive reinforcing throughout
  • Exclusive inner arc-weld construction on all seams for maximum strength and durability
  • Opened door is supported by aircraft-type cables with swedged fittings, which can be removed to allow for a fully open swing-down position
  • Finished with ARMOR-TUF™ Coating
  • Door cable easily adjusts to three positions
  • Mounting legs are made of 1/4" bar stock and provide sturdy mounting
  • Full weather stripping provides a positive seal against the weather


Model 346 Hi-Side Box - Aluminum

Dimensions: H:16\" W: 13\" L: 45 5/8\"

Weight (lbs.): 45

Cubic feet: 5.3

  • Includes: Mounting legs and hardware
  • Door Opening: Measures 11.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Aluminum

Installation Instructions

Alternate View





Model 346-5 Hi-Side Box - Aluminum - Black

Dimensions: H:16 W: 13 L: 45 5/8

Weight (lbs.): 45

Cubic feet: 5.3

  • Includes: Mounting legs and hardware
  • Door Opening: Measures 11.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Aluminum - Black

Installation Instructions

Alternate View





Model 364 Hi-Side Box - Aluminum

Dimensions: H:16\" W: 13\" L: 64 1/8\"

Weight (lbs.): 58

Cubic feet: 7.6

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 11.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Aluminum

Installation Instructions

Alternate View





Model 364-5 Hi-Side Box - Aluminum - Black

Dimensions: H:16 W: 13 L: 64 1/8

Weight (lbs.): 58

Cubic feet: 7.6

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 11.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Aluminum - Black

Installation Instructions

Alternate View





Model 372 Hi-Side Box - Aluminum

Dimensions: H:16\" W: 13\" L: 72 1/8\"

Weight (lbs.): 64

Cubic feet: 8.7

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 11.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Aluminum

Installation Instructions

Alternate View





Model 372-5 Hi-Side Box - Aluminum - Black

Dimensions: H:16\" W: 13\" L: 72 1/8\"

Weight (lbs.): 64

Cubic feet: 8.7

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 11.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Aluminum - Black

Installation Instructions

Alternate View





Model 390 Hi-Side Box - Aluminum

Dimensions: H:16 W: 13 L: 90 1/8

Weight (lbs.): 72

Cubic feet: 10.8

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 11.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Aluminum

Installation Instructions

Alternate View





Model 390-5 Hi-Side Box - Aluminum - Black

Dimensions: H:16 W: 13 L: 90 1/8

Weight (lbs.): 72

Cubic feet: 10.8

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 11.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Aluminum - Black

Installation Instructions

Alternate View





Model 396 Hi-Side Box - Aluminum

Dimensions: H:16 W: 13 L: 96 1/8

Weight (lbs.): 80

Cubic feet: 11.5

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 11.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Aluminum

Installation Instructions

Alternate View





Model 396-5 Hi-Side Box - Aluminum - Black

Dimensions: H:16 W: 13 L: 96 1/8

Weight (lbs.): 80

Cubic feet: 11.5

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 11.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Aluminum - Black

Installation Instructions

Alternate View





Model 347 Super-Side Box - Aluminum

Dimensions: H:18 W: 16 L: 45 5/8

Weight (lbs.): 52

Cubic feet: 7.6

  • Includes: Mounting legs and hardware
  • Door Opening: Measures 13.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Super-Side Box - Aluminum

Installation Instructions

Alternate View





Model 347-5 Super-Side Box - Aluminum - Black

Dimensions: H:18 W: 16 L: 45 5/8

Weight (lbs.): 52

Cubic feet: 7.6

  • Includes: Mounting legs and hardware
  • Door Opening: Measures 13.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Super-Side Box - Aluminum - Black

Installation Instructions

Alternate View





Model 365 Super-Side Box - Aluminum

Dimensions: H:18\" W: 16\" L: 64 1/8\"

Weight (lbs.): 66

Cubic feet: 10.7

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 13.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Super-Side Box - Aluminum

Installation Instructions

Alternate View





Model 365-5 Super-Side Box - Aluminum - Black

Dimensions: H:18 W: 16 L: 64 1/8

Weight (lbs.): 66

Cubic feet: 10.7

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 13.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Super-Side Box - Aluminum - Black

Installation Instructions

Alternate View





Model 391 Super-Side Box - Aluminum

Dimensions: H:18 W: 16 L: 90 1/8

Weight (lbs.): 86

Cubic feet: 14.9

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 13.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Super-Side Box - Aluminum

Installation Instructions

Alternate View





Model 391-5 Super-Side Box - Aluminum - Black

Dimensions: H:18 W: 16 L: 90 1/8

Weight (lbs.): 86

Cubic feet: 14.9

  • Includes: Mounting legs and hardware
  • Door Opening: Each Measures 13.5
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Super-Side Box - Aluminum - Black

Installation Instructions

Alternate View





Model 246-3 Super Hi-Side Box - Steel - White

Dimensions: H:16 W: 12 3/8 L: 45 5/8

Weight (lbs.): 72

Cubic feet: 5.16

  • Door Opening: Measures 11.5
  • Includes: Mounting legs and hardware
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Super Hi-Side Box - Steel - White

Installation Instructions

Alternate View





Model 264-3 Hi-Side Box - Steel - White

Dimensions: H:16 W: 12 3/8 L: 64 1/8

Weight (lbs.): 96

Cubic feet: 7.26

  • Door Opening: Each Measures 11.5
  • Includes: Mounting legs and hardware
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Steel - White

Installation Instructions

Alternate View





Model 272-3 Hi-Side Box - Steel - White

Dimensions: H:16 W: 12 3/8 L: 72 1/8

Weight (lbs.): 107

Cubic feet: 8.16

  • Door Opening: Each Measures 11.5
  • Includes: Mounting legs and hardware
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Steel - White

Installation Instructions

Alternate View





Model 290-3 Hi-Side Box - Steel - White

Dimensions: H:16 W: 12 3/8 L: 90 1/8

Weight (lbs.): 126

Cubic feet: 10.21

  • Door Opening: Each Measures 11.5
  • Includes: Mounting legs and hardware
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Steel - White

Installation Instructions

Alternate View





Model 290-5 Hi-Side Box - Steel - Black

Dimensions: H:16 W: 12 3/8 L: 90 1/8

Weight (lbs.): 126

Cubic feet: 10.21

  • Door Opening: Each Measures 11.5
  • Includes: Mounting legs and hardware
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Steel - Black

Installation Instructions

Alternate View





Model 296-3 Hi-Side Box - Steel - White

Dimensions: H:16 W: 12 3/8 L: 96 1/8

Weight (lbs.): 133

Cubic feet: 10.89

  • Door Opening: Each Measures 11.5
  • Includes: Mounting legs and hardware
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Hi-Side Box - Steel - White

Installation Instructions

Alternate View





Model 247-3 Super-Side Box - Steel - White

Dimensions: H:18 W: 15 1/8 L: 45 5/8

Weight (lbs.): 84

Cubic feet: 7

  • Door Opening: Measures 13.5
  • Includes: Mounting legs and hardware
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Super-Side Box - Steel - White

Installation Instructions

Alternate View





Model 265-3 Super-Side Box - Steel - White

Dimensions: H:18 W: 15 1/8 L: 64 1/8

Weight (lbs.): 112

Cubic feet: 10

  • Door Opening: Each Measures 13.5
  • Includes: Mounting legs and hardware
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Super-Side Box - Steel - White

Installation Instructions

Alternate View





Model 291-3 Super-Side Box - Steel - White

Dimensions: H:18 W: 15 1/8 L: 90 1/8

Weight (lbs.): 145

Cubic feet: 14

  • Door Opening: Each Measures 13.5
  • Includes: Mounting legs and hardware
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.

Super-Side Box - Steel - White

Installation Instructions

Alternate View





Model 297-3 SUPER Jumbo Super-Side Box - Steel - White

Dimensions: H:24\" W: 15 7/8\" L: 96 1/8

Weight (lbs.): 178

Cubic feet: 21

  • Door Opening: Each Measures 19.5"H x 44"W
  • Includes: Mounting legs and hardware
  • Brushed stainless steel paddle handle, with rotary style latch mechanism features a two position latch that prevents the door from inadvertently opening.
  • Aluminum doors swing down for easy access and a full view of the contents. Opened door is supported by aircraft-type cables with swedged fittings which can be removed to allow for a fully open swing down position.
  • Rain gutter design is fully weather stripped and provides a positive seal against the weather.
  • FULL 6\" taller than our largest super-side box with 1/3 more storage!

SUPER Jumbo Super-Side Box - Steel - White

Installation Instructions

Alternate View







© 2007 Knaack Manufacturing Company
