Vanair ADHD - 125 to 185 CFM


Download Brochure Download Printable Brochure



For heavy-duty applications where powerful PTO performance is needed but space is limited, rely on the Vanair Abovedeck Hydraulic Drive (ADHD) rotary screw air compressors - the most powerful, versatile modular air compressor in the mobile market. With three units - 125, 160, and 185 CFM - the ADHD is ideal for equipment already fitted with hydraulic systems in the paint stripping and utilities markets.

Standard Pressure Model
Capacity (CFM) 125 160 185
Air Pressure (psi) 100 100 100
Hydraulic Flow (gpm) 30 37 42
Hydraulic Pressure (psi) 2500 2300 2400

High Pressure Model
Capacity (CFM) 125 160 185
Air Pressure (psi) 150 150 150
Hydraulic Flow (gpm) 30 37 42
Hydraulic Pressure (psi) 3000 2900 2900

Compressor Dimensions - (All Models)

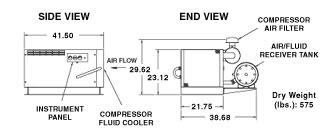

Assembly with Side-Mount Receiver with fittings (in.) - 41.5L x 39W x 30H

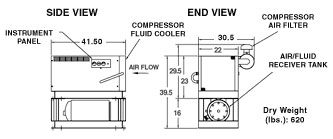

Assembly with Vertically Stacked Receiver with fittings (in.) - 41.5L x 30.5W x 45.5H



HYDRAULIC SYSTEM REQUIREMENTS

  • 3000 psi rated hydraulic pump
  • Pressure relief set at 3200 psi
  • Hydraulic reservoir at 2.5 times the oil flow (recommended)
  • Dedicated gear pump
  • Additional oil cooler for high-ambient temperatures

SPECIAL FEATURES

Compressor

  • Vanguard™ Lifetime Warranty on air end
  • Direct coupled to a gear-type hydraulic motor
  • Powder-coated, galvanneal sheetmetal enclosure
  • Side-mounted or vertically stacked receiver/oil sump
  • Oil-injected Sullair® rotary screw air end
  • Integrated Inlet Control
  • Eliminates bolt-on designs

Safety Equipment

  • High-pressure shutdown
  • High-temperature shutdown
  • Air pressure-relief safety valve
  • Minimum pressure orifice
  • Automatic blowdown on shutdown
  • Oil fill plug safety relief

Instrumentation

  • Conveniently located, easy-to-read instrumentation panel features an hour meter, pressure gauge, and temperature gauge
