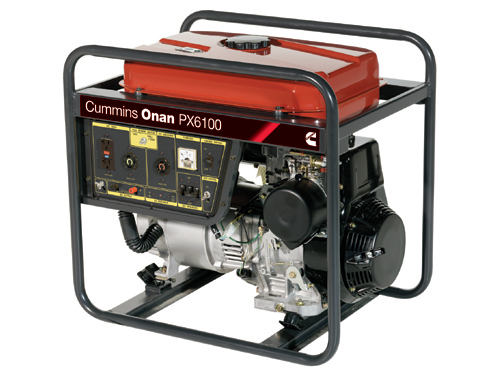

PX6100 & PX6100e

PX6100

Download Brochure Download Printable Brochure

Features and Benefits

  • 4800 watts running, 5800 watts peak
  • 7 hour continuous operating time (at rated load)
  • Manual start (*optional electric start)
  • 11 HP, 4-stroke overhead valve engine
  • Large 5.7 gallon fuel tank
  • 120 V GFCI protected duplex, 120 V 30 A twist-lock, 120 V/240 V 20 A twist-lock
  • Volt meter
  • Idle control system
  • Full power switch
  • Automatic low oil shutdown
  • 2 year limited warranty
  • Meets EPA, CARB, CSA standards



Weight, Size and Sound Level

  • Weight of PX6100: 172 lbs (78 kg)
  • Weight of PX6100e: 180 lbs (81.6 kg)
  • Size: Length 27 in (685.8 mm), width 19 in (482.6 mm), height 25 in (635 mm)
  • Sound: Readings at 7 m: 75 dB(A)



Models and Ratings

  • AC rated output: 4.8 kW/4800 W
  • AC max output: 5.8 kW/5800 W
  • AC voltage: 120 V/240 V
  • AC frequency: 60 Hz
  • 120 V AC rated amperage - Rated/max: 40 A/48.3 A
  • 240 V AC rated amperage - Rated/max: 20 A/24.2 A
  • DC voltage: 12 V
  • Engine horsepower: 11
  • Fuel tank capacity: 5.7 Gal/21.6 L



Ratings apply to altitudes up to 1000 ft (304.8 m), 85 °F (30 °C). Total power available will decrease 3.5% for each 1000 ft (304.8 m) above 1000 ft and 2.0% for each 10 °F (5.5 °C) increase in ambient temperature above 85 °F (30 °C).
