Side-Mount - 60 to 250 CFM
Download Printable Brochure

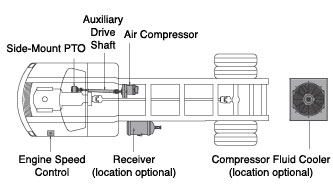

The side-mount configuration is the most popular Vanair underdeck. This product, which uses a PTO drive shaft as the operating mechanism, is the ideal choice to run a Vanair air compressor.
Shown: 125 to 200 cfm Kit
UDSM |
Capacity (CFM) |
60 |
85 |
125 |
160 |
185 |
200 |
250 |
Air Pressure (psi) |
100 to 150 |
100 to 150 |
100 to 150 |
100 to 150 |
100 to 150 |
100 to 150 |
100 to 150 |
Compressor Input (rpm) |
1030 |
1460 |
1330 |
1675 |
1920 |
2075 |
1800 |
Typical Engine Speed (rpm) |
790 |
1125 |
1025 |
1290 |
1475 |
1595 |
1595 |
Compressor Oil Capacity (gal.) |
2.5 |
2.5 |
3.5 |
3.5 |
3.5 |
3.5 |
7.0 |
Mounted Weight (Dry) (lbs.) |
328 |
328 |
407 |
407 |
407 |
407 |
710 |
Component Dimensions (with fittings) - Models 60 and 85 |
Compressor (in.) |
11.9W x 18L x 13H |
Air/Fluid Receiver (in.) |
10D x 30L |
Fluid Cooler (in.) |
22W x 17.5H x 9.25D |
Component Dimensions (with fittings) - Models 125, 160, and 185 |
Compressor (in.) |
11.9W x 18L x 13H |
Air/Fluid Receiver (in.) |
12D x 38L |
Fluid Cooler (in.) |
26.5W x 19.25H x 9.25D |
SPECIAL FEATURES
Safety Equipment
- High-pressure shutdown
- High-temperature shutdown
- Air pressure-relief safety valve
- Minimum pressure orifice
- Automatic blowdown on shutdown
- Oil fill plug safety relief
Instrumentation
- Hour Meter
- Pressure Gauge
- Temperature Gauge
