MAXILIFT CRANES OFFER THE FOLLOWING FEATURES:

  • Maxilift's are very compact and take up very little space when stowed.
  • Maxilift hexagonal boom is constructed of high tensile steel giving it greater strength and less weight.
  • Counter balance valves on both lifting and extension cylinders ensure safe and smooth operation.
  • Crane structure is fabricated out of high tensile steel which makes the crane lighter and gives you a better payload.
  • High speed winch available
  • Double rack and pinion allows the crane a 15° slope angle
  • 11 800 ft lbs slewing torque
  • Available in marine and non marine versions

MARINE TREATMENT

  • Sand blasting of structural elements
  • Painting:
    • Organic epoxy zinc-plating primer 20-30 µ
    • Bi-component epoxy priming coat 50-60 µ
    • Bi-component polyurethane final painting 50-60 µ
  • NITREG treatment on link pins
  • Rods treatment with guarantee of 250 hours in saline fog
  • Valves protection by anticorrosive treatment or painting
  • INOX piping
  • "Offshore" hoses and INOX clamps



H2 B3 Rating
Maxilift Cranes are manufactured to strict European standards. and carry a Din 15018-H2 B3 rating.

H2 B3 Rating

The H factor is a measure of the structural integrity of the crane concerning the amount the crane can lift beyond its rated capacity and the additional stress of high -speed operation on the structure H1 is rated 100% and H2 is rated at 130%.

The B Factor is a measure of the total number of cycles for which the crane is designed. Maxilift is designed for 200 000 cycles whereas a B2 crane is 63 000 cycles.

Maxilift is engineered for a working life of 15 years.

M400-30 300 ft lbs Lifting Capacity
M500-35 300 ft lbs Lifting Capacity


Legend:



Hydraulic
Manual Opional

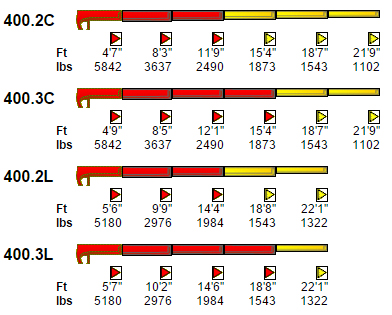

400.2C


Ft 4'7'' 8'3'' 11'9'' 15'4'' 18'7'' 21'9''
lbs 5842 3637 2490 1873 1543 1102

400.3C

  Ft
4'9''
8'5''
12'1''
15'4''
18'7''
21'9''
lbs 5842 3637 2490 1873 1543 1102

400.2L

  Ft 5'6'' 9'9'' 14'4'' 18'8'' 22'1''
  lbs 5180 2976 1984 1543 1322

400.3L

  Ft 5'7'' 10'2'' 14'6'' 18'8'' 22'1''
  lbs 5180 2976 1984 1543 1322

Specifications:
Lifiting Capacity: 30,300 lbs.
Crane Weight: 1000-1200 lbs.
Brochure: Download PDF

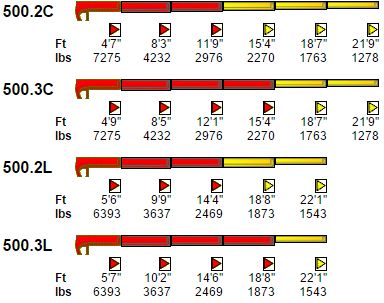

500.2C


Ft 4'7'' 8'3'' 11'9'' 15'4'' 18'7'' 21'9''
lbs 7275 4232 2976 2270 1763 1278

500.3C

  Ft
4'9''
8'5''
12'1''
15'4''
18'7''
21'9''
  lbs
7275
4232
2976
2270
1763
1278

500.2L

  Ft 5'6'' 9'9'' 14'4'' 18'8'' 22'1''
  lbs 6393 3637 2469 1873 1543

500.3L

  Ft 5'7'' 10'2'' 14'6'' 18'8'' 22'1''
  lbs 6393 3637 2469 1873 1543

Specifications:
Lifiting Capacity: 35,300 lbs.
Crane Weight: 1000-1200 lbs.
Brochure: Download PDF
