Hydra-Weld P300-16
(Jumpstart Option Available)

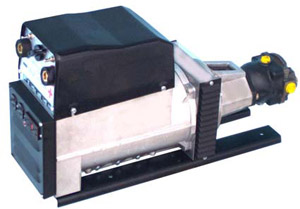

Hydra-Weld-P300-6

TWO IN ONE COMPACT PACKAGE

This Welder-Generator can do it all. Not only is it the smallest and lightest unit on the entire market and saves valuable space, it provides welding power and electric power (120 Volt or 120/240 Volt) 60 Hz or optional DC.

The Hydra-Weld is a hydraulically Driven DC Welder/AC Generator combination set. The Welder produces 400 Amps. of welding power, while the Generator delivers 16000 Watts of reliable AC power.

This unit is now providing reliable power since 1985.

The built in pressure compensating flow regulator guarantees a constant Welder/Generator speed over a wide flow variations.

Specifications
Welding Amps 300
Welding Range 10 – 300
Strike Volts 88 VDC
Welding Volts 21 – 36 VDC
Duty Cycle 70%
AC Volts 134 Amps @ 120V
or AC Volts 64 Amps @120/240 Volts
AC Frequency 60 Hz
Motor Starting 300 %
Sine Wave Less than 3% Distortion
Flow 28 GPM
Pressure 2500 PSI
Weight 300 lbs.
Dimensions 12″W – 22″H – 39″L
Pressure Port 1 1/16 SAE O-Ring
Return Port 1 1/16 SAE O-Ring
Case Drain 9/16 O-Ring

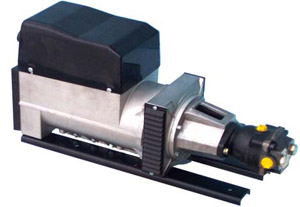

HW-200-4-pic2

Getec’s patented Hydraulic Motor Mount is machined to .0001 of 1″. This precise motor alignment enables Getec to give a lifetime warranty on the coupling. Its complete 360 degrees solid casting guarantees a smooth and chatter proof operation between Generator and motor.

HW-200-4-pic3

Getec’s Integrated Pressure Compensated Flow Regulator (patent pending) eliminates unnecessary hose and fitting connections between motor and flow regulator which reduces installation costs. This unique arrangement saves valuable space and eliminates future leaky fittings and hoses.

* Other Flow and Pressure Ranges “Motor Displacements” Available
