Standard Features

• Fits Most 8' and 6' Beds
• Power Up and Power Down
• 1.5Kw motor (3 HP max) for Hydraulic Pump
• 2 cu yd cap.(8'); 1.5 cu yd cap.(6')
• Payload cap.: 6,000 lbs. max*

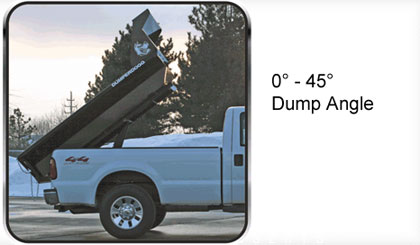

• Dump Angle 0° - 45°
• 12 Gauge Steel Material
• Black Powder Coat Finish
• Includes Manual Safety Bar
• Tethered Control Box with 9' Cord
• Grease Fitting/Holes in Pivot Points
• Includes Body-Up Indicator Kit (SK10)
• Tailgate Chains
• 20' Battery Cables
• Black Powder Coat Structural Steel Frame
• Double Pivoting and Removable Steel Tailgate
• 8 Stake Pockets
• 3/4" Diameter Tailgate Hinge Pins

Optional Features

• 5531010 - Bolt-On Cab Guard for 8' Steel Insert & 6' Steel Insert
• 5531020 - Wall Extension Bracket Kit for 8' Steel Insert & 6' Steel Insert (hardware & 2 brackets per side), accepts one 2" x 12" per side**
• DTR5508 - Roll Tarp Kit, 5.4' x 9.5' for 5531006***
• DTR5511 - Roll Tarp Kit, 5.4' x 11.5' for 5531000***

Part Numbers

• 5531000 - 8' Steel Insert
• 5531006 - 6' Steel Insert

* weight limits not to exceed manufacturer's gross vehicle weight limits
**for use with 5531000, 5531006, must have 5531010 installed (2" x 12" not included)
***must be used with 5531010
