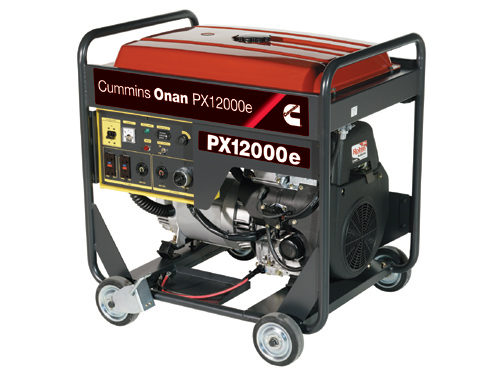

PX12000e

PX12000e

Download Brochure Download Printable Brochure

Features and Benefits

  • 10000 watts running, 12000 watts peak
  • 8.2 hour continuous operating time (at rated load)
  • Electric start 22 HP, 4-stroke overhead valve engine
  • Large 11.4 gallon fuel tank
  • 120 V GFCI protected duplex, 120 V twist-lock, 120 V/240 V 30 A twist-lock, 120 V/240 V 50 A twist-lock
  • Volt and hour meter
  • Idle control system
  • Large muffler w/U.S. Forestry approved spark arrestor
  • High performance alternator w/max surge capacity
  • 4 wheel kit standard
  • 2 year limited warranty
  • Meets EPA, CARB, CSA standards



Weight, Size and Sound Level

  • Weight: 329 lbs (149.23 kg)
  • Size: Length 33 in (838.2 mm), width 30 in (762 mm), height 34 in (863.6 mm)
  • Sound: Readings at 7 m: 77 dB(A)



Models and Ratings

  • AC rated output: 10 kW/10000 W
  • AC max output: 12 kW/12000 W
  • AC voltage: 120 V/240 V
  • AC frequency: 60 Hz
  • 120 V AC rated amperage - Rated/max: 83.3 A/100 A
  • 240 V AC rated amperage - Rated/max: 41.7 A/50 A
  • DC voltage: 12 V
  • Engine horsepower: 22
  • Fuel tank capacity: 11.4 Gal/43.1 L



Ratings apply to altitudes up to 1000 ft (304.8 m), 85 °F (30 °C). Total power available will decrease 3.5% for each 1000 ft (304.8 m) above 1000 ft and 2.0% for each 10 °F (5.5 °C) increase in ambient temperature above 85 °F (30 °C).
