NEW MAXILIFT SERIES HAS MORE MUSCLE

MAXILIFT CRANES NOW WITH BETTER POWER TO WEIGHT RATIO

MORE HYDRAULIC EXTENSIONS AVAILABLE ON SMALLER MODELS

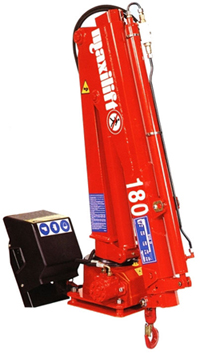

Compact Miniboom. Cranes are commonly mounted on the corner of a flat deck truck but also suitable for mounting on a trailer. It can also be equipped with a winch.

MAXILIFT CRANES OFFER THE FOLLOWING FEATURES:
  • Maxilift's are compact and take up very little space when stowed.
  • Maxilift hexagonal boom is constructed of high tensile steel giving it greater strength and less weight.
  • Counter balance valves on both lifting and extension cylinders ensure safe and smooth operation.
  • Crane structure is fabricated out of high tensile steel which makes the crane lighter and gives you a better payload.
  • Multiple crane models allow you to have pick the right model for the job.
  • Four hydraulic extensions on certain models.
  • Cranes can be mounted closer to the load and in some cases give them greater lifting greater lifting capacity than much larger monoboom cranes.
  • The electrical power supply and pump is enclosed in a compact metal box with a durable PVC cover to protect it against the harsh North American elements.

Maxilift Leads the Way with ECI system

The ECI overload protection indicator system that has been developed for Maxilift cranes displays the lifting capacity achieved while lifting a load. The display is a series of LED's of different colors that illuminate as capacities are achieved. This accurately indicates the load of the crane. A transducer on the main-lift cylinder measures the pressure and the ECI unit converts the signal to a reading on the display enabling the crane to be operated safely at all times as you know exactly the weight you are lifting, avoiding overload conditions.



Please select the model of your choice from the list below for more information:

*MAXISTAB Manual AWD Hydraulic Stabilizers avail. upon request

Mod. Dimensions
Dimensiones
(ft)
Lifting capacity
Capacidad de elevación
(ft lbs)
Slewing angle
Angulo de rotación
Basic crane weight
Peso de la grúa básica (lbs)
Crane weight with base
Peso de la grúa con base
(lbs)

  A B C       LM
Load limiting device
Dispositivo limitador de carga
SC
Load limiting device with stability control
Dispositivo limitador de carga con control de estabilidad

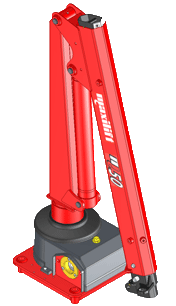

50 47" 26" 12" 3,700 330° 140-210 -- -- --
110 48" 26" 12" 7,300 330° 230-385 370-525 -- --
150 52" 27" 12" 10,500 330° 360-450 500-590 -- --
180 52" 31" 12" 12,500 330° 400-460 620-685 * --
230 56" 32" 12" 16,000 360° 495-600 720-830 * *
270 56" 32" 12" 18,500 360° 495-600 720-830 * *
270 L 59" 45" 12" 18,500 360° 515-640 740-860 * *
330 61" 34" 15" 23,000 360° 590-760 880-1,040 * *
380 64" 36" 15" 27,000 360° 680-870 1,030-1,210 * *
510 71" 53" 21" 35,000 330° 970-1,050 -- * --
510 L 71" 61" 21" 35,000 330° 1,000-1,200 -- * --
