Split-Shaft - 125 to 185 CFM


Download Brochure Download Printable Brochure



For those vehicles that do not have a PTO, the Vanair underdeck with a split-shaft configuration offers the opportunity to get all the advantages of a PTO.

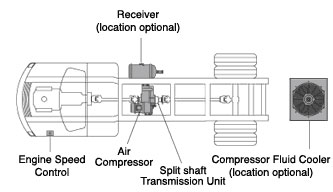

Shown: 125 to 185 cfm Kit


UDSS
Capacity (CFM) 125 160 185
Air Pressure (psi) 100 to 150 100 to 150 100 to 150
Compressor Input (rpm) 1050 1300 1485
Compressor Oil Capacity (gal.) 3.5 3.5 3.5
Mounted Weight (Dry) (lbs.) 550 550 550

Component Dimensions (with fittings)
Compressor/PTO Unit (in.) 33W x 26L x 21H
Air/Fluid Receiver (in.) 12D x 38L
Fluid Cooler (in.) 26.5W x 19.5H x 9.25D

SPECIAL FEATURES


Safety Equipment

  • High-pressure shutdown
  • High-temperature shutdown
  • Air pressure-relief safety valve
  • Minimum pressure orifice
  • Automatic blowdown on shutdown
  • Oil fill plug safety relief

Instrumentation

  • Hour Meter
  • Pressure Gauge
  • Temperature Gauge
